YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line

Name: YK1600 ZJV5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line
Brand: YIKE GROUP
Price: 8500 USD

Wholesale YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line from china suppliers

Brand Name : YIKE GROUP

Model Number : YK-1600

Certification : ISO,CE

Place of Origin : Hebei, China

MOQ : 1 Set for Hydraulic Mill Roll Stand

Price : USD8500

Payment Terms : L/C, T/T, T/T, Western Union

Supply Ability : Reel Stand Mill Roll Stand 50 Sets per Month

Delivery Time : 30days

Packaging Details : Plastic Film

Product name : Hydraulic Mill Roll Stand

Item : Corrugated Paperboard Carton Line

Size Available : 1400-3200mm

Usage : Kraft Paper Stand

Application : Carton Line

Voltage : 220v/380v/415v/440v

Color : Customized Color

Suitable for : Corrugated Cardboard Plant

Contact Now

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line

※ZJ-V5B hydraulic shaftless mill roll stand

※structural feature:

★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right

and others,the lifting of the paper adopts hydraulic drive.

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and they can paper on the both sides at the same time.

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line

※Technical parameters:

1.the range of clamping paper:MAX1600mm MIN1000mm

2,clamping diameters:MAX￠1500mm MIN￠350mm

3,main shaft diameter of paper holder:￠240mm

4,gas source work pressure(Mpa):0.4---0.8Mpa

5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6

6,single weight:MAX4000Kg

※Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2,lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m

4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

Automatic Grade

Automatic

Key Machines

Hydraulic Shaftless Mill Roll Stand, corrugated production line, single facer line

Packaging Material

Plastic film

Condition

New

Brand Name

YIKE GROUP

Year

2024

Place of Origin

Hebei, China

Voltage

220v/380v/415v/440v

Product name

Hydraulic Mill Roll Stand

Color

Customized Color

MOQ

1set

Design

Customer'requirement

Type

1600mm Hydraulic Shaftless Mill Roll Stands Machines

Working wide

1600MM

Weight capacity

design speed

100m/min.

Suitable for

Corrugated Cardboard Plant

Advantage

High Effiency

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line

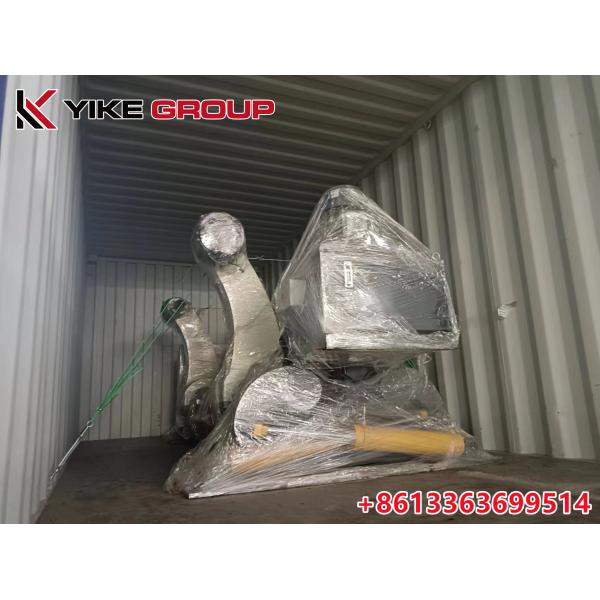

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line Images
