Tungsten Carbide Corrugated Roller For Corrugated Cardboard Production Line

CHINA YIKE GROUP CO.,LTD
Contact Now

Tungsten Carbide Corrugated Roller For Corrugated Cardboard Production Line

  • 1
  • 2

Brand Name : YIKE GROUP

Model Number : YK-280

Certification : ISO,CE

Place of Origin : China

MOQ : 1 Set for Single Facer

Payment Terms : L/C, T/T

Supply Ability : Corrugated Roller 500 Sets Per Month

Delivery Time : 1 Months For Corrugated Roller

Packaging Details : Corrugated Roller Packages by Wooden Box

Price : Negotiation

Item : Corrugated Cardboard Production Line

Type : Tungsten Carbide

Size : 280/320/360mm

Used For : Single Facer Machine

Packages : Wooden Box

Application : Carton Box Corrugator Machine

Flute : A B C E F G Flute

Name : Corrugated Roller

Contact Now

CHINA YIKE GROUP CO.,LTD

WEB: www.yikegroup.net

Email: anna@yikegroup.net

Whatsapp: 008613363699514

Tungsten Carbide Corrugated Roller For Corrugated Cardboard Production Line

Tungsten Carbide Corrugated Roller Used For Corrugated Cardboard Production Line

Features

  • High precision hard chrome steel A C B E F G flute corrugated roller

  • Type: Tungsten Carbide

  • Used for carton box corrugator machine-Single Facer

Specification Of Corrugated Roller

  • Surface Diameter: 100-600mm
  • Surface Length: 100-400mm
  • Way to transfer the paper: Inner suction mode, outer suction mode and positive suction mode.
  • Way to heat and drain: Traditional siphon intake mode, flume siphon intake mode, peripheral heating mode.

Description

  • Material: 48CrMo alloy steel
  • Heat treatment: Intermediate frequency quenching, hardness:58±2°
  • Roller Grinder: Automatic CNC double housing corrugated roller grinders. The rollers’run out≤0.03mm
  • Coating: Tungsten carbide, Thickness ≥0.06mm, Hardness≥HV1200. We adopt Swiss Sulzer Metco tungsten carbide coating system.
  • Lifetime ≥30,000,000 meters.​

Process Flow

  • Special alloy steel forge piecial for corrugated roller.
  • 4M CNC intermediate frequency queching machines.
  • The hardness of surface materials is over HRC60 that keeps the flute in a good state.
  • Computer design to optimize flute Siemens system CNC corrugated roller grinding machines for grinding flute.

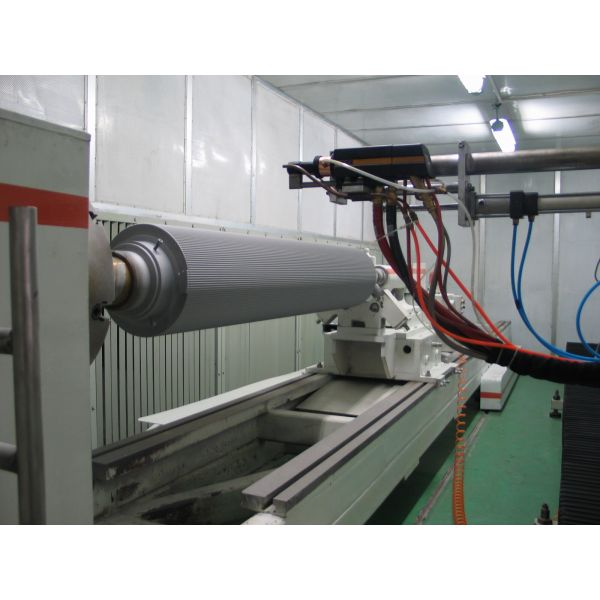

  • Tungsten carbined coating: We adopted Oerlikon Metec HVOF coating machine from Switzerland.
  • Precession polishing technology.
  • Complete product inspection and strict guarantee system.

Photos


Tungsten Carbide Corrugated Roller For Corrugated Cardboard Production Line
